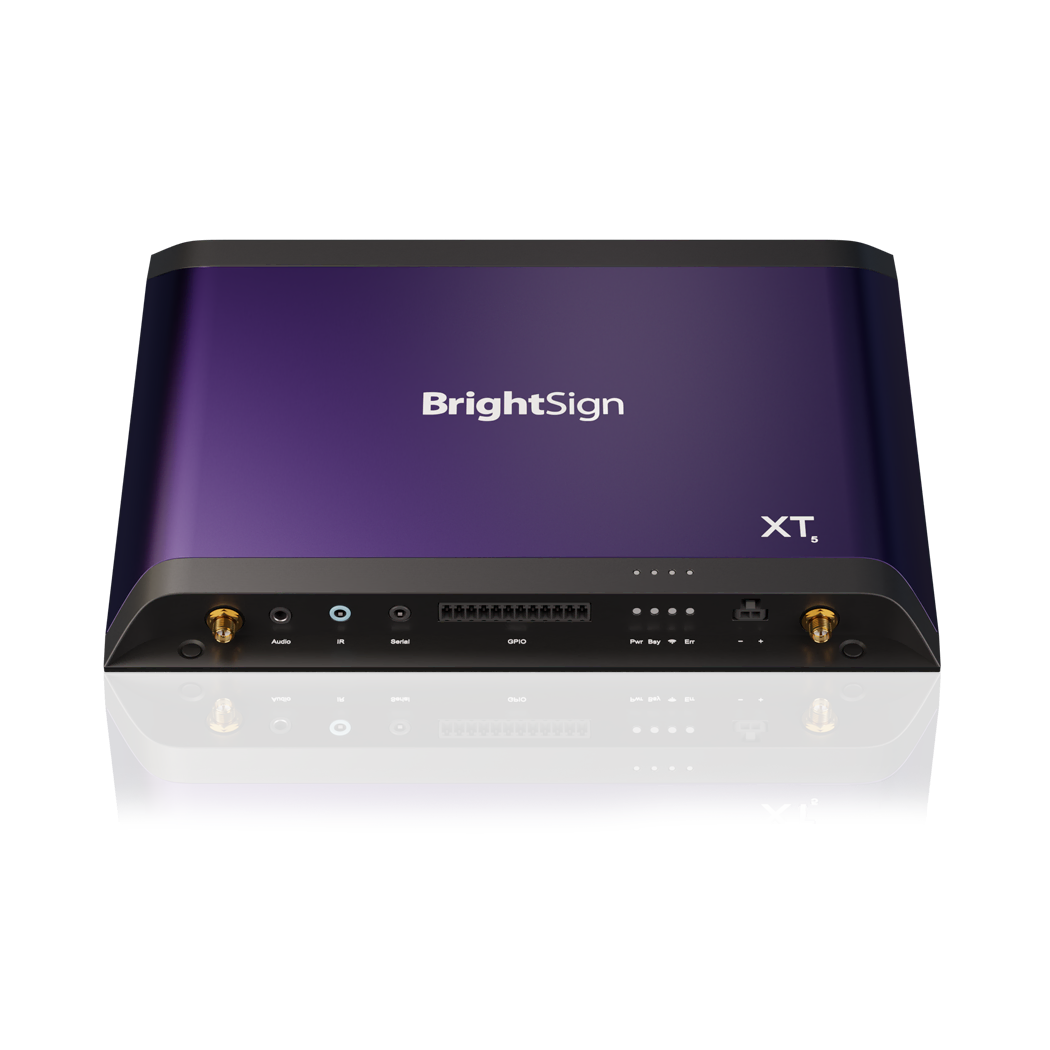

XT5
BrightSign XT5 is built to elevate and future-proof your signage experiences with the perfect blend of power, performance, and versatility. Industry-best video capabilities, immersive motion graphics and seamless live TV capabilities are the tools XT5 offers to create captivating displays for both single and dual screen experiences now and for years to come.
Added to quote request
| XT245 | XT1145 | XT2145 | |
|---|---|---|---|
| Input/Output | Standard | Expanded | Expanded |
| HTML5 Performance Level | 3D WebGL & real time data visualization | 3D motion graphics, video and live TV | Dual HTML presentations driving 2 screens |
| HDR10 Video Decoding | Single 8K60p
Dual 4K60p (10-bit) Full HD |
Single 8K60p
Dual 4K60p (10-bit) Full HD |
Single 8K60p
Dual 4K60p (10-bit) Full HD |
| Video Rotation | 4K & Full HD | 4K & Full HD | 4K & Full HD |
| Image & Graphics Decoding | 4K & Full HD | 4K & Full HD | 4K & Full HD |
| HDMI Outputs | 1x HDMI 2.1a | 1x HDMI 2.1a | 1x HDMI 2.1a
1x HDMI 2.0a |
| HDMI In | HDMI 2.0a | HDMI 2.0a | |
| USB | 1x USB-A
1x USB-C |
1x USB-A
1x USB-C |
|
| Serial | 3.5mm RS-232 | 3.5mm RS-232 | |
| GPIO | 12-pin Phoenix Connector |
12-pin Phoenix Connector
with 8 bi-directional Ports |
12-pin Phoenix Connector
with 8 bi-directional Ports |
| IR | 3.5mm In / Out | 3.5mm In / Out | 3.5mm In / Out |
| Ethernet | Gigabit with PoE+ | Gigabit with PoE+ | Gigabit with PoE+ |
| Optional BrightSign Mobile USB Modem | NO | YES | YES |
| Optional 256GB SSD Storage | YES | YES | YES |
| Dimensions (WxDxH) | 238.62 x 185.9 x 19.19 mm | 238.62 x 185.9 x 19.19 mm | 238.62 x 185.9 x 19.19 mm |
Downloads
- BrightAuthor is a PC software application for BrightSign that makes creating, publishing and managing BrightSign presentations simple and dependable. It is the central application for all your BrightSign needs, from building and distributing your presentations to managing your entire network of remote signs via the BrightSign Network.
BrightAuthor
Updated: 09-07-2018 - Download page for firmware suitable for the BrightSign XT5 / XD5 / HD5 / HS5 / LS5 series of products.
XT5 / XD5 / HD5 / HS5 / LS5 Firmware
Updated: 30-01-2024 -
XT5 Datasheet
Updated: 30-01-2024 Size: 1.21M
Associated Products
-

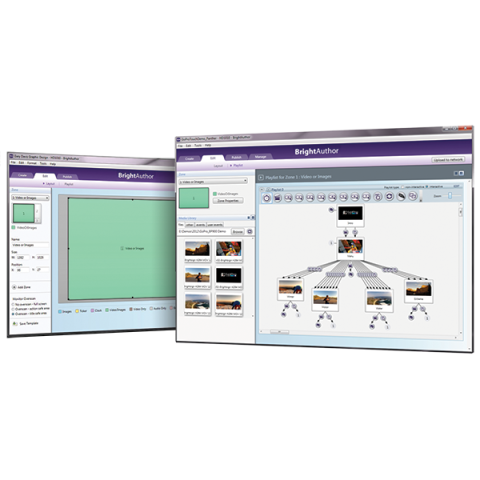

BrightAuthor
