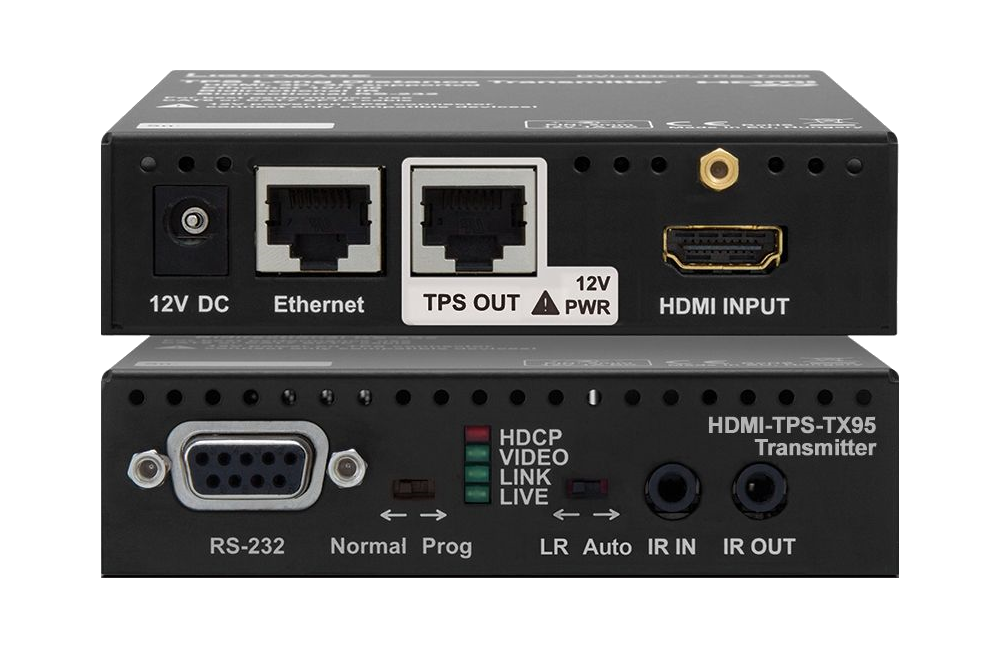

HDMI-TPS-TX95

HDMI-TPS-TX95 and HDMI-TPS-RX95 twisted pair HDBaseTTM extenders provide extension of uncompressed Full-HD video for long distances over a single CATx cable. The unit offers bi-directional RS-232, IR, and Ethernet pass-through on the same CATx cable that carries the video signal. The TPS extenders support full HDCP and EDID compliance and work at all standard AV resolutions up to 4K and 48-bit color depth handling all standard audio formats and also 120 Hz 3D signals. Remote powering is available through a single CATx cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used standalone.

The Auto operation mode allows the device to detect the far end extender’s mode and adopt it. If the far end device is in Auto mode or it is a third party HDBaseTTM device the link will be set to HDBT mode. If the far device is in forced Long Reach Mode then the auto operation will set the Link to Long Reach Mode.


Applications

  • Post production studios
  • Control room
  • Digital Signage
  • Multiroom video
  • Conference rooms, collaborative telepresence


Features

  • Selectable operation mode (Auto or forced Long Reach mode)
  • Ethernet extension (100 Mbps)
  • Bi-directional RS-232 and IR extension (pass-through)
  • Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
  • Can be remote powered through CATx cable (12V)
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
  • 1920x1080@120Hz/4:4:4, 4096x2048@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • Supports all VESA and HDTV resolutions
  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • Bi-directional RS-232 extension (pass-through)
  • HDCP 2.2 compliant (transparent pass-through)
  • Compatible with 120 Hz 3D video signals
  • Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
  • No signal latency, zero frame delay
  • Extends DVI or HDMI 1.4 + Ethernet + RS-232 + IR over one CAT5/6/7 cable
  • Selectable operation mode (Auto or forced Long Reach mode)
  • Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
  • HDBaseT compatible
  • Ethernet extension (100 Mbps)
  • Transparent EDID pass-through
  • Bi-directional IR extension (pass-through)
  • CEC support (pass-through)
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • No video compression
  • Bi-directional RS-232 and IR extension (pass-through)
  • Status LEDs (Live, TPS link, signal and HDCP detect)
  • Twist-and-lock DC power connector
  • Low power mode (standby)
  • Local or remote (remote-send / remote-receive) power source
  • External universal power adaptor
  • Mounting options for rack, furniture or truss
