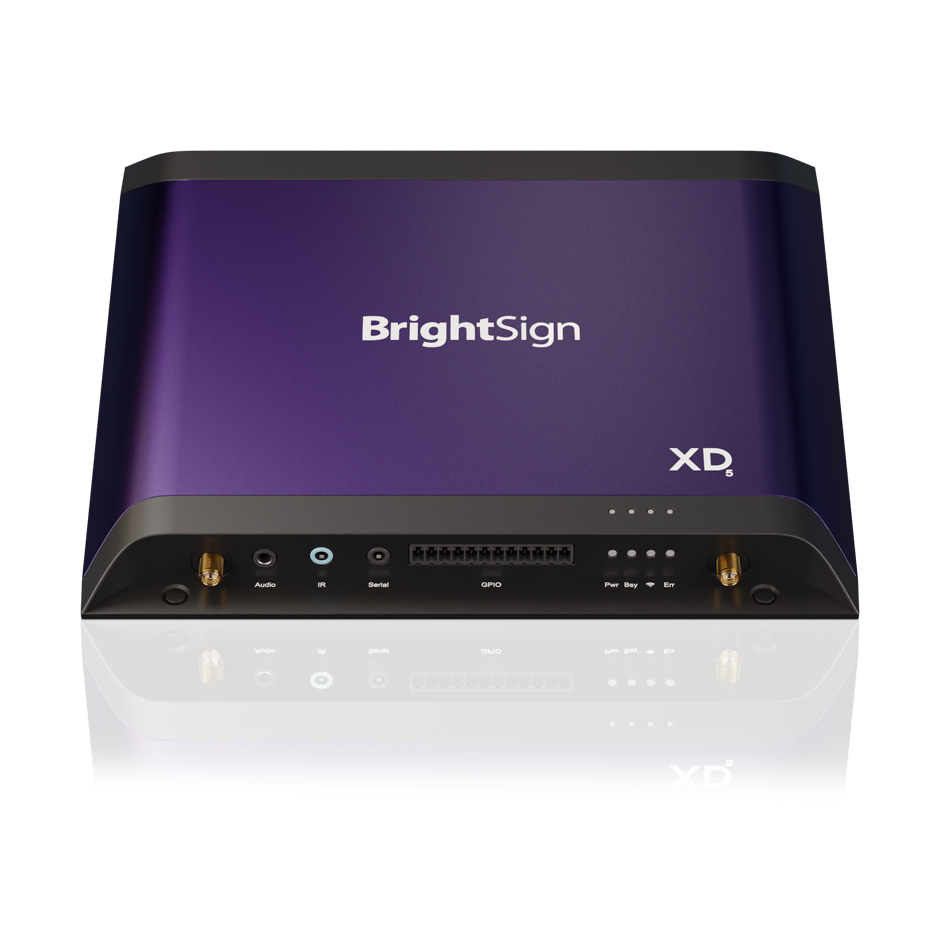

XD5
The BrightSign XD5 is designed to meet the needs of modern digital signage, which heavily relies on HTML5 content and motion graphics. Its optimized performance allows it to efficiently power demanding 2D Web GL motion graphics in Full HD, with quick loading times, seamless animations, and responsive interactions. The device supports multi-touch interactions, such as pinch, zoom, and swipe, for a unique and captivating user experience. Additionally, real-time transformation of motion graphics linked to live data feeds ensures that your signage always stays up-to-date. With Power Over Ethernet (PoE+), self-encrypting SSD storage, and a slim enclosure, installations are simplified and secure. The BrightSign XD5 offers powerful HTML5 performance, optimized for HD motion graphics and high-quality 4K video, making it an ideal choice for secure storage with room to grow.
| XD235 | XD1035 | |
|---|---|---|
| Input/Output | Standard | Expanded |
| HTML5 Performance Level | Enterprise: Powers challenging 2D WebGL motion graphics in Full HD | Enterprise :Powers challenging 2D WebGL motion graphics in Full HD with multi-touch interactions |
| Video Decoding | Single 4K60p HDR (10-bit) or Dual Full HD | Single 4K60p HDR (10-bit) or Dual Full HD |
| Video Codecs | 4K: H.265 at 60p & H.264 at 30p | 4K: H.265 at 60p & H.264 at 30p |
| HDMI Outputs | 1 HDMI 2.0a | 1 HDMI 2.0a |
| Media Formats | 4K VIDEO: .ts, .mov, .mp4, .mkv | 4K VIDEO: .ts, .mov, .mp4, .mkv |
| Gigabit Power over Ethernet (PoE+) | YES | YES |
| 256GB SSD PCIe Storage Option | YES | YES |
| USB-A: provides 5V/1A power to peripheral devices | NO | YES |
| USB-C: supports high-speed host mode & provides 5V/1A power to peripheral devices | NO | YES |
| 3.5mm RS-232 Serial Port | NO | YES |
| Dimensions (WxDxH) | 205 x 185.9 x 19.2 mm | 205 x 185.9 x 19.2 mm |
Downloads

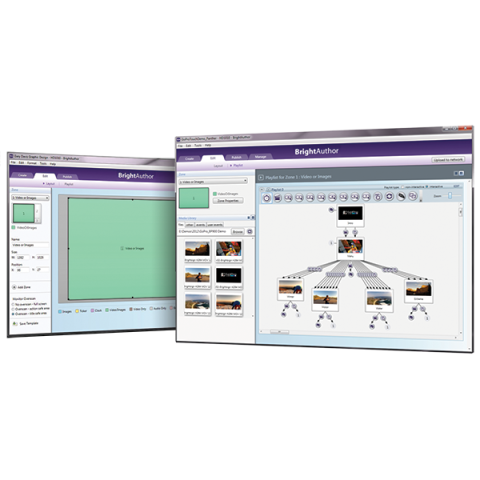

- BrightAuthor is a PC software application for BrightSign that makes creating, publishing and managing BrightSign presentations simple and dependable. It is the central application for all your BrightSign needs, from building and distributing your presentations to managing your entire network of remote signs via the BrightSign Network.
BrightAuthor
Updated: 09-07-2018 - Download page for firmware suitable for the BrightSign XT5 / XD5 / HD5 / HS5 / LS5 series of products.
XT5 / XD5 / HD5 / HS5 / LS5 Firmware
Updated: 30-01-2024 -
XD5 Datasheet
Updated: 30-01-2024 Size: 2.64M
