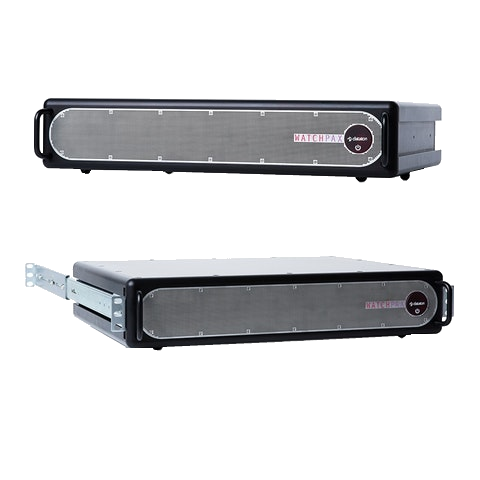

WATCHPAX 60
A plug-and-play media server series that exceeds the requirements of the toughest environments with POWER – in processing, performance and playback! It supports uncompressed 4K playback, has a dual power supply and range of models offering from 4 up to 12 outputs - including 8 channels of bi-directional SDI.
Power to perform
The WATCHPAX 60 series offers a compact form factor with sheer power in performance. With the latest technology under the hood, it is ideal for demanding applications such as live events, attractions and broadcast installations.
WATCHPAX 60 is available in three models from 4 to 12 output channels. Each model features a dual power supply, HDMI and SDI input, balanced audio, dual 10 Gbit/s network for high-speed content transfer, high performance ultra-durable NVMe media storage, as well as a WATCHOUT license - backed by a two-year warranty.
| Feature/Server | WATCHPAX 60 (4x4K) | WATCHPAX 60 (4x4K Genlock) | WATCHPAX 60 (4x4K + 8xSDI) |
|---|---|---|---|
| Model/Part Number | 3368A | 3368B | 3368C |
| Embedded WATCHOUT license | Yes | Yes | Yes |
| Output Channels | 4 x 4K | 4 x 4K | 12 (4 x 4K, 8 x SDI*) |
| Connector Type | 4 x DP 1.4 | 4 x DP 1.4 | 4 x DP 1.4 & 2x12G or 8x3G |
| Fixed Input Channels | 1 x HDMI, 1x SDI | 1 x HDMI, 1x SDI | 1 x HDMI, 8 x SDI* |
| Optional Input Channels | USB only | USB only | USB only |
| Audio | 4 x XLR | 4 x XLR | 4 x XLR |
| NDI - Video over IP Capture | Yes | Yes | Yes |
| High-Speed Storage | Yes: 1.9TB, 3.8TB or 7.6TB | Yes: 1.9TB, 3.8TB or 7.6TB | Yes: 1.9TB, 3.8TB or 7.6TB |
| Data Throughput (Approx Numbers) | 6000 MB/s | 6000 MB/s | 6000 MB/s |
| External Sync/Genlock | N/A | Included | Included |
| Genlocked Outputs | Yes | Yes | Yes |
| Timecode In | Yes | Yes | Yes |
| Ethernet | 2 x 10 GB | 2 x 10 GB | 2 x 10 GB |
| USB | 2 x USB 3.0 | 2 x USB 3.0 | 2 x USB 3.0 |
| Redundant Power Supply | Yes | Yes | Yes |
| Warranty Included | 2 year | 2 year | 2 year |
| Extended Warranty Option At Cost | Yes, up to 5 years | Yes, up to 5 years | Yes, up to 5 years |
Downloads
- WATCHPAX 60 Product Brief
WATCHPAX 60 Product Brief
Updated: 09-10-2019 Size: 1.04M
