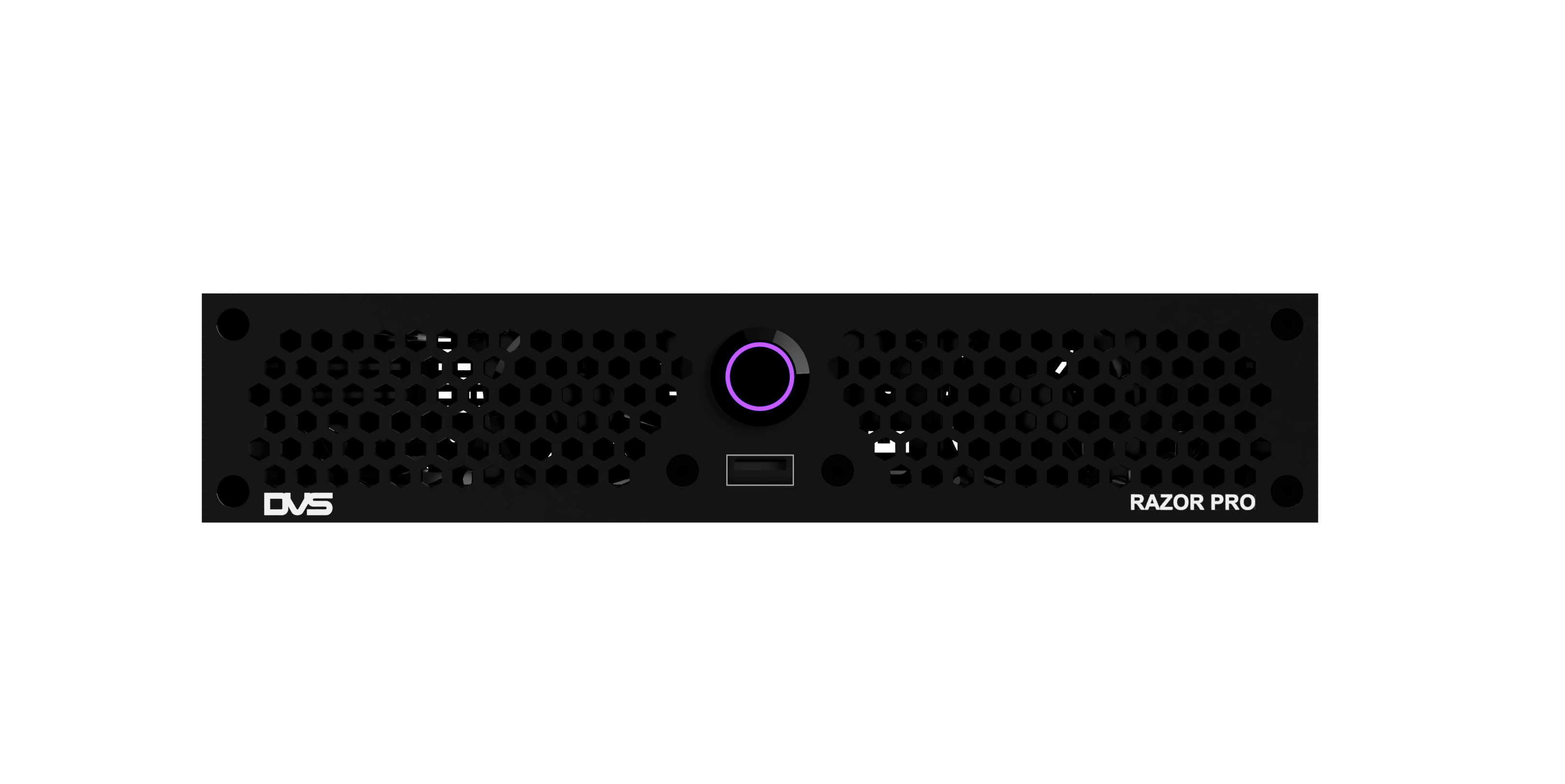

RAZOR Pro

The Razor range is DVS’s ultra-small form factor series. Perfect for local playback of video content or interactive applications. With its Intel processor, Solid State NVMe Drive and dedicated nVidia Quadro GPU four output graphic card this ultra-small form-factor system is incredibly powerful.

The Razor Pro embraces the latest Intel Chipset and delivers a marked increase in both the CPU and GPU performance by way of the nVidia Quadro graphics card. The Razor Pro can deliver stunning HD and 4K video via 4 x DisplayPort outputs.

This is a major step forward in ultra-small form factor PC’s being only 214 x 44 x 230mm WxHxD in size. This enables the Razor Pro to be built into small exhibits and with its optional on-board WIFI installation becomes a very easy consideration. Not forgetting control room environments, the DVS Razor Pro can be rack mounted using the Razor Pro Rack Mount Kit. This kit mounts two Razors Pro's neatly in the space of 1U with additional space for the external power supplies and cable management.

* All systems are completely customisable and hardware displayed are recommendations. Please contact DVS for any advice on hardware recommendations


Specifications

  • DVS Razor Pro Chassis - 214 x 44 x 230mm (WxHxD)
  • 150W External PSU
  • Mini ITX Industrial Motherboard
  • Intel Core i3/i5/i7 Quad/Hex Core Processor
  • 8/16/32GB DDR4 Memory
  • nVIDIA Quadro P620/P1000 Graphic Card
  • 240GB / 512GB / 1TB NVMe M.2 Storage ( Operating System )
  • 512GB / 1TB / 2TB NVMe M.2 Storage ( Optional: Asset )
  • Operating System - Windows Enterprise IoT LTSC 2019 or Windows 10 Pro





Downloads

  • Razor Pro Specification
    Updated: 08-01-2020 Size: 387.65k
    Razor Pro Specification


Associated Products

  • DVS Razor Pro Dual Rack Mount Kit

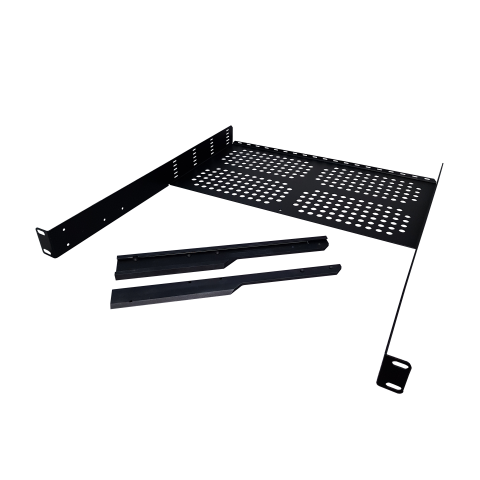

    DVS Razor Pro Dual Rack Mount Kit

    The Razor Pro Rackmount Kit allows the mounting of two DVS Razor Pro’s side by side in a 1U Rack space. The rear shelf gives enough space to mount the external power supplies and enables cable management and strain relief.


  • DVS Razor Pro VESA Mount Kit

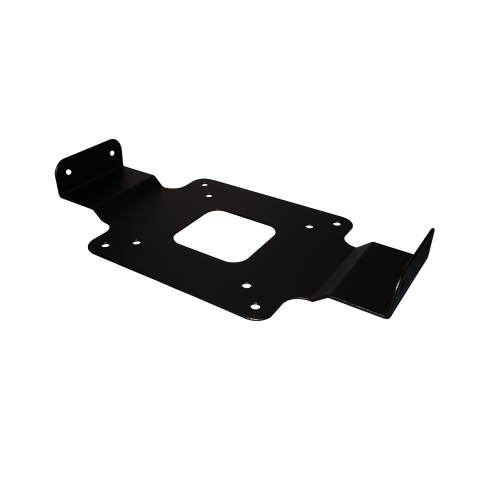

    DVS Razor Pro VESA Mount Kit

    The Razor Pro VESA Mount allows a single DVS Razor Pro to be fitted to either a 100x100 or 75x75 standard VESA mount.
