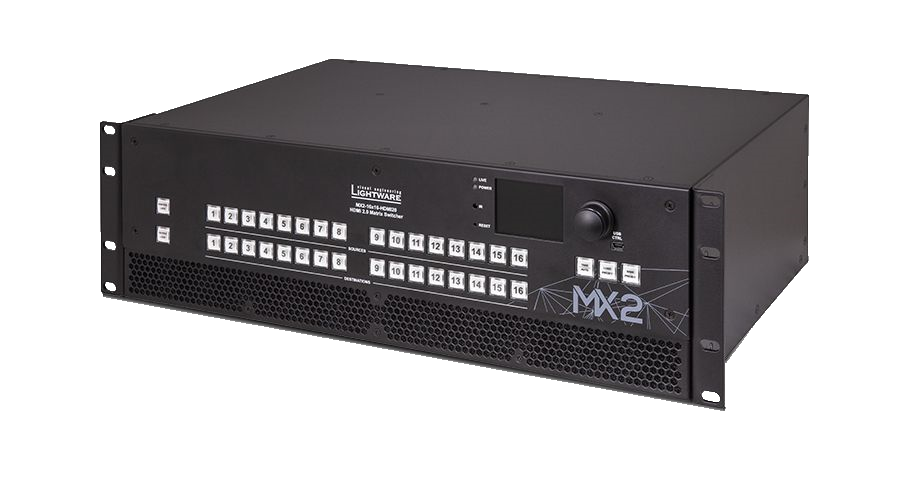

MX2-16x16-HDMI20

The MX2-16x16-HDMI20 is a member of the HDMI 2.0 standalone matrix switcher family supporting uncompromised 4K UHD resolution at 60Hz 4:4:4.

It has an outstanding port density that makes it particularly suitable for rental and fix install applications, as well as for future-proof operation centers. It is a perfect choice for installations where at most 16 HDMI 2.0 compliant input and output ports are required.

This standalone product has 16 HDMI 2.0 inputs and 16 HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.


Features

  • HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
  • HDR and Dolby Vision support
  • Front to back cooling airflow
  • Built-in universal power supply
  • HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
  • HDCP enable/disable function on input
  • Vista Spyder and Barco Encore compatibility
  • Multiple TCP/IP connections
  • Advanced EDID Management
  • Save and reload full crosspoint configurations as preset
  • Front panel LCD menu and buttons for crosspoint control
  • Intuitive control software for device configuration
  • Device control via Ethernet (TCP/IP), RS-232 and USB
  • CEC support (command injection)
  • Fully non-blocking switching architecture
  • Built-in website for device configuration
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
  • HDR and Dolby Vision support
  • Pixel Accurate Reclocking
  • No video compression
  • Redundant power supplies available
  • Firmware upgrade through Ethernet
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • No signal latency, zero frame delay



Downloads

  • MX2 Product Series
    Updated: 08-10-2019 Size: 3.56M
    MX2 Product Series
  • MX2 HDMI20 Series User Manual
    Updated: 08-10-2019 Size: 25.64M
    MX2 HDMI20 Series User Manual
  • MX2 HDMI20 Series Quick Start Guide
    Updated: 08-10-2019 Size: 7.13M
    MX2 HDMI20 Series Quick Start Guide
