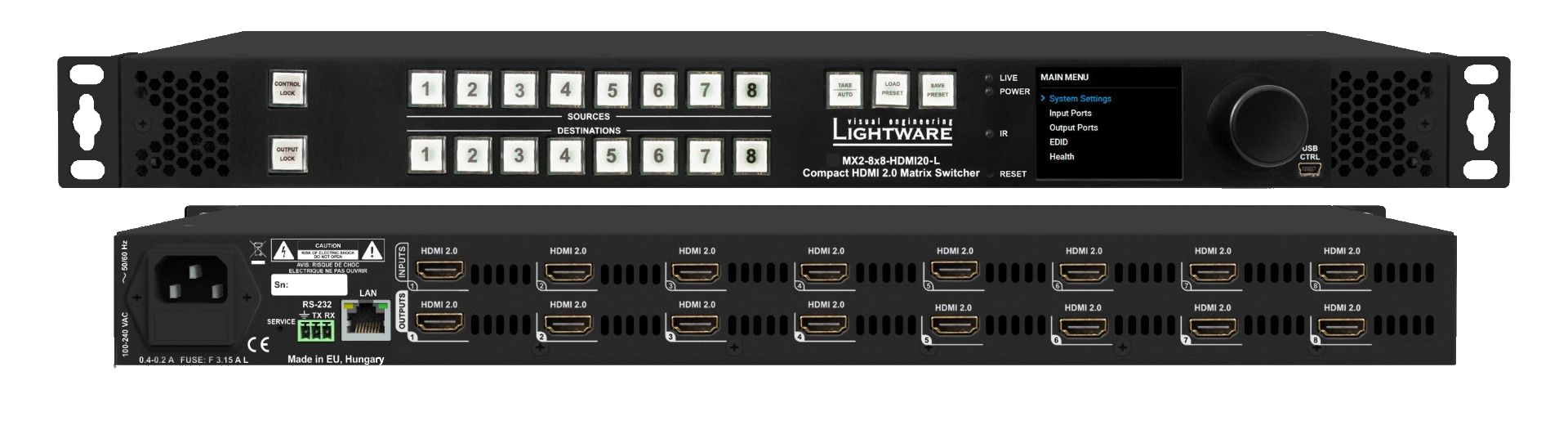

MX2-8X8-HDMI20-L

The MX2-8x8-HDMI20 L is an HDMI 2.0 compatible, standalone matrix switcher that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.

Its compact size, silent design and its crosspoint switching front panel keys make it iparticularly suitable for live events.

This standalone product has 8 HDMI 2.0 inputs and 8 HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.

The MX2-8x8-HDMI20 L matrix switcher supports both HDR and Dolby Vision in the HDMI signal.


Features

  • HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
  • Device control via Ethernet (TCP/IP), RS-232 and USB
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
  • HDR and Dolby Vision support
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • Front to back cooling airflow
  • Built-in universal power supply
  • Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
  • Advanced EDID Management
  • Front panel LCD menu and buttons for crosspoint control
  • CEC support (command injection)
  • Pixel Accurate Reclocking
  • No signal latency, zero frame delay



Downloads

  • MX2 Product Series
    Updated: 08-10-2019 Size: 3.56M
    MX2 Product Series
  • MX2 HDMI20 Series User Manual
    Updated: 08-10-2019 Size: 25.64M
    MX2 HDMI20 Series User Manual
  • MX2 HDMI20 Series Quick Start Guide
    Updated: 08-10-2019 Size: 7.13M
    MX2 HDMI20 Series Quick Start Guide
