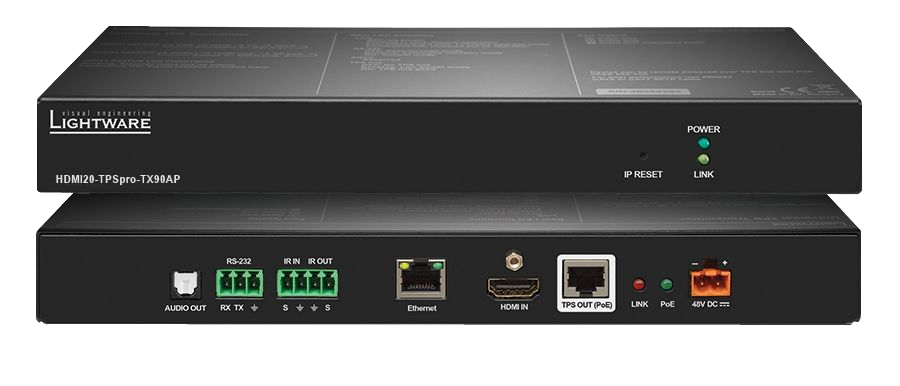

HDMI20-TPSpro-TX90AP

HDMI20-TPSPro-TX90AP and HDMI20-TPSPro-RX90A are a transmitter and receiver pair providing extension of 4K 60Hz 4:4:4 video with embedded audio to a range of up to 100 m over a single CATx cable. These devices employ a light, visually lossless compression for the highest available resolution, which require more than 10Gbps data speed.

These units offer bi-directional RS-232, IR, return audio and Ethernet pass-through forwarded over the a single CATx cable together with the video signal. The extenders support full HDCP and EDID compliance and work on all standard AV resolutions up to 4K and 48-bit color depth, also handling all standard audio formats and 120 Hz 3D signals.

The TX unit powers the RX device remotely through the CATx cable.

The devices can be mounted on a rack shelf or used standalone.


Please note that we recommend purchasing this product as a transmitter/receiver pair, as the receiver can only be powered by remote powering provided by the transmitter over a CAT cable.


Features

  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
  • Bi-directional RS-232 extension (pass-through)
  • HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
  • HDCP 2.2 compliant (transparent pass-through)
  • Ethernet extension (100 Mbps)
  • Built-in website for device configuration
  • Bi-directional RS-232 and IR extension (pass-through)
  • Status LED for extension link detection
  • Metal enclosure
  • Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
  • Compact and silent design



Downloads

  • HDMI20 TPSpro TX90AP Product Brief
    Updated: 08-10-2019 Size: 641.74k
    HDMI20 TPSpro TX90AP Product Brief
  • HDMI20 TPSpro Series QuickStartGuide
    Updated: 08-10-2019 Size: 2.52M
    HDMI20 TPSpro Series QuickStartGuide


Associated Products

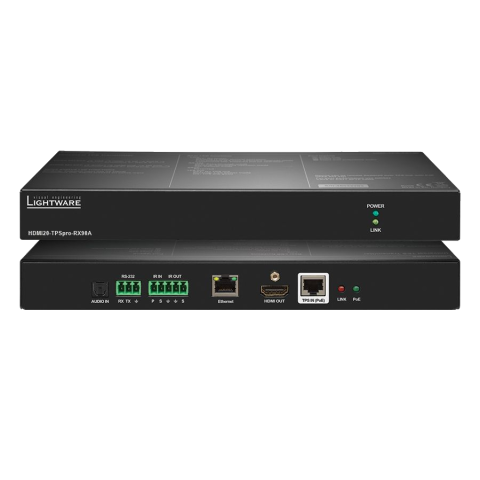

  • HDMI20-TPSpro-RX90A
