G-SERIES Media Servers
The next evolution in the DVS media server line-up; The G-SERIES Media Server is designed for complex real-time rendered content and high-end media playback, taking our universal platform media servers to the next level.

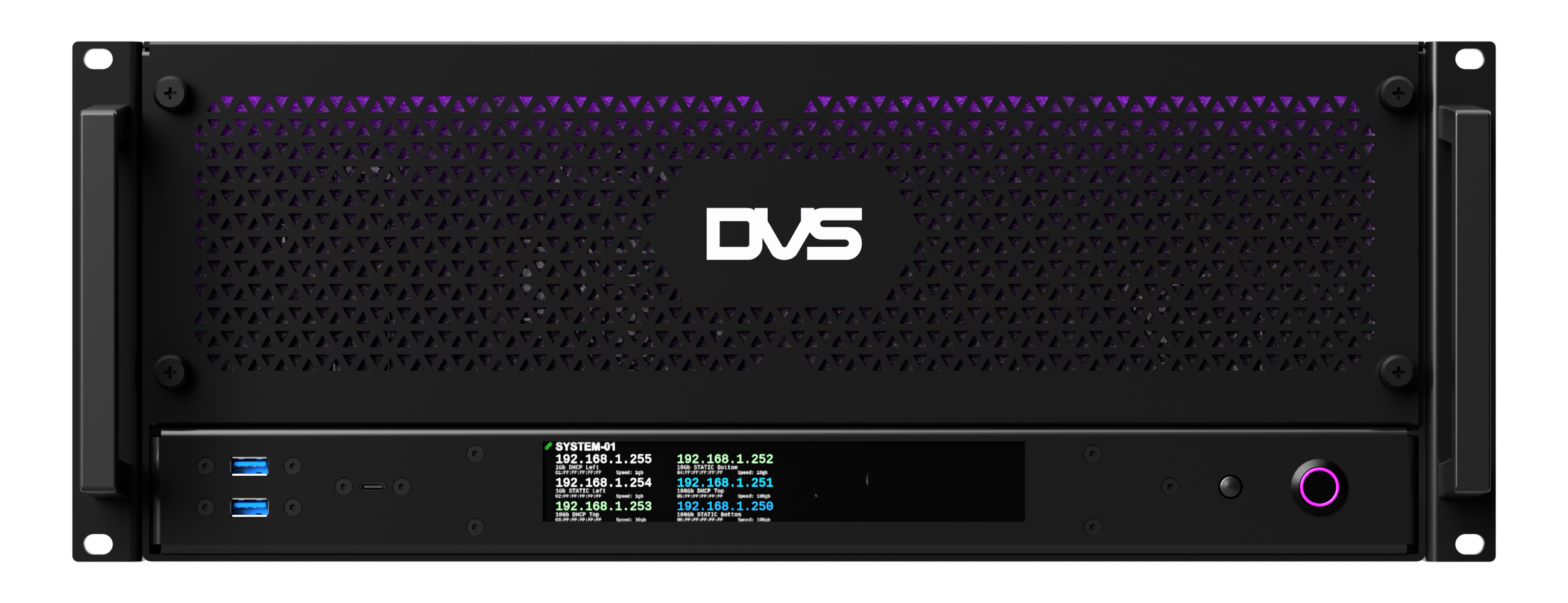

This professional server includes advanced features, such as: a built-in touch screen providing live server status information and settings adjustments. Rear colour LED indicators for each output, giving engineers direct feedback on EDID as well as sync status, and a modular backplane with professional connectors.
The G-SERIES is powerful and flexible tool for the live-events and broadcast industry.

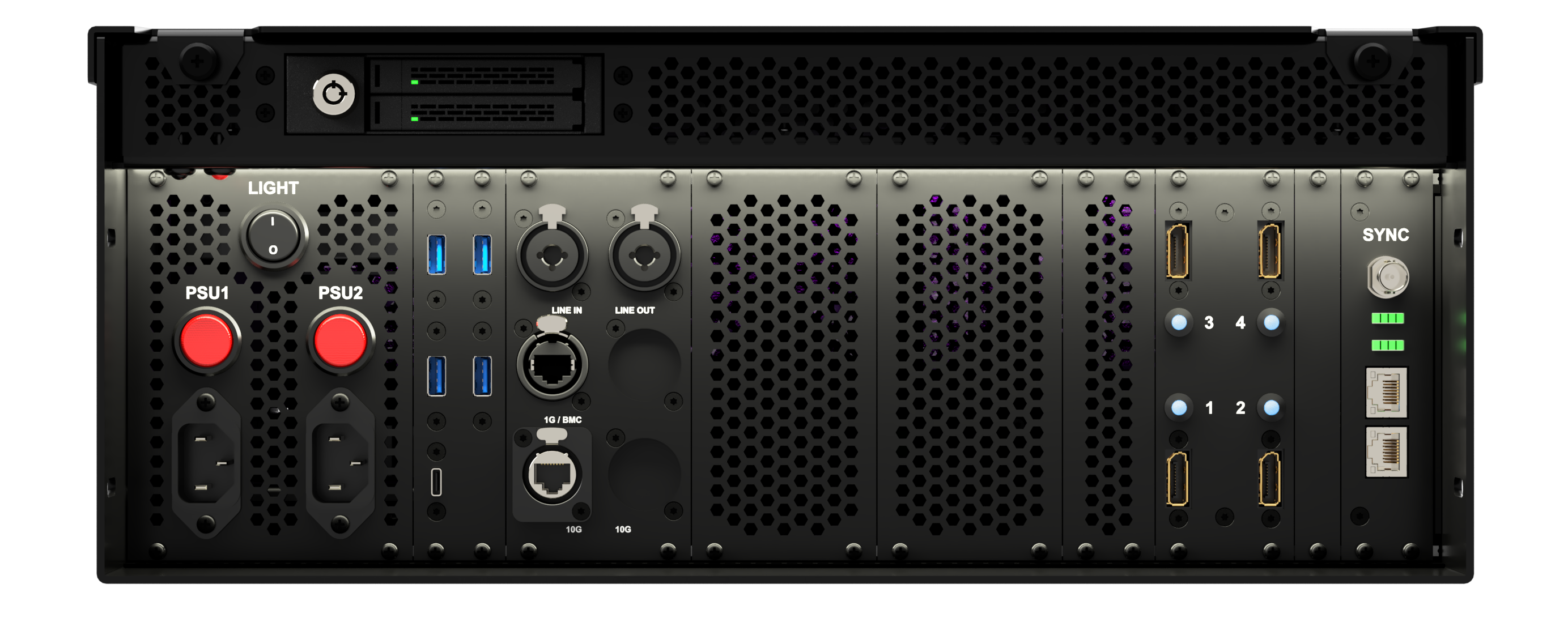

The G Series server is designed to travel. This custom built chassis is primarily constructed of aluminium alloy, reducing the weight of the overall media server. The important internals are vibration isolated to protect from high frequency vibrations during transit. The rear input and output connections are recessed for protection, and this area includes a lighting solution to allow engineers to operate even in low light or dark environments.

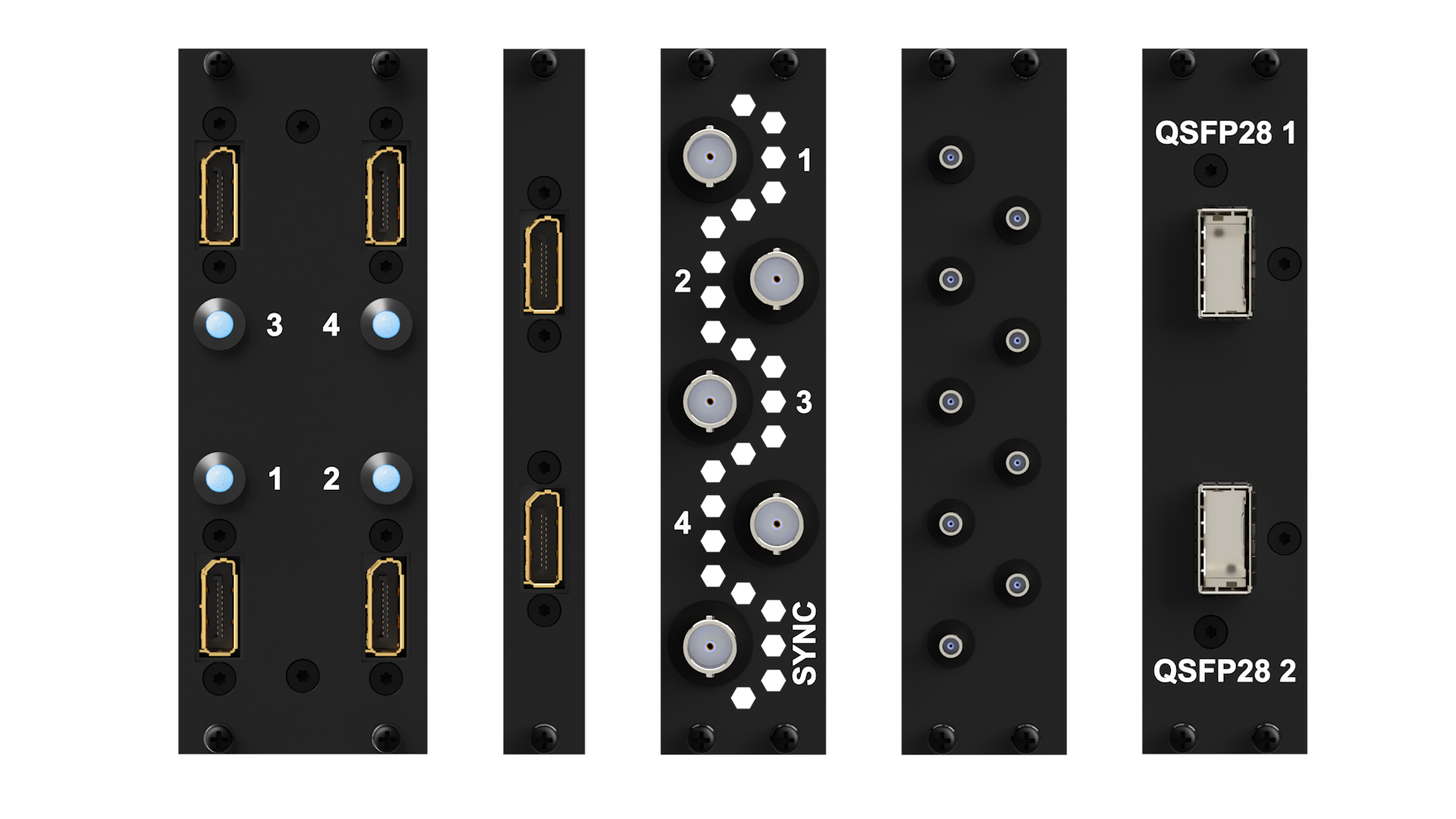

The modular back panel of the G Series server offers flexibility and upgradability. As well as protecting the high performance hardware of the server.
Specifications
- DVS 4U G SERIES Rackmount Chassis - 600 x 443 x 177mm (D x W x H)
- Redundant Power Supply
- 16 Core, 32 Thread Processor
- 256GB DDR5 Octa Channel ECC Memory
- nVidia RTX6000 ADA Graphics Card ( Up to 4 concurrent displays )
- Sync II Module for Framelock and Genlock
- NVMe Boot Drive ( M.2 in a 2 port rear caddie )
- 7.68TB of NVMe Storage ( 2 x 3.84TB NVMe Gen 4 U.2 Drives in RAID 0 )
- 1 x Gigabit Network, 1 x 10 Gigabit Network Ports
- Operating System - Windows Enterprise IoT LTSC
Event Specification
includes the following upgrades from the base spec- GS-G2-GUI - Additional GUI graphics card
- GS-G2-R15.2T - Increase asset storage capacity to 15.2TB ( 4 x 3.84TB in RAID 0 )
- GS-G2-1C4KHDMI-4C3GSDI - Four 3G SDI or one HDMI 2.0 Capture Card
The event specification has the following upgrades available: GS-G2-28C, GS-G2-36C, GS-G2-56C, GS-G2-2R60ADA, GS-G2-ES-R22.8T, GS-G2-ES-R30.4T, GS-G2-ES-4C12GSDI.
Upgrade Options
| Core | |
| GS-G2-28C | 28 Core Processor Upgrade |
| GS-G2-36C | 36 Core Processor Upgrade |
| GS-G2-56C | 56 Core Processor Upgrade |
| Graphics | |
| GS-G2-2R60ADA | Additional RTX6000 ADA GPU to support up to 8 outputs |
| GS-G2-GUI | Additional GUI graphics card for local show setup and running |
| Storage | |
| GS-G2-R11.4T | Increase asset storage capacity to 11.4TB ( 3 x 3.84TB in RAID 0 ) |
| GS-G2-R15.2T | Increase asset storage capacity to 15.2TB ( 4 x 3.84TB in RAID 0 ) |
| GS-G2-R22.8T | Increase asset storage capacity to 22.8TB ( 6 x 3.84TB in RAID 0 ) |
| GS-G2-R30.4T | Increase asset storage capacity to 30.4TB ( 8 x 3.84TB in RAID 0 ) |
| GS-G2-ES-R22.8T | Increase asset storage capacity on event spec to 22.8TB ( 6 x 3.84TB in RAID 0 ) |
| GS-G2-ES-R30.4T | Increase asset storage capacity on event spec to 30.4TB ( 8 x 3.84TB in RAID 0 ) |
| Capture | |
| GS-G2-4C12GSDI | Eight Input / Output, four 12G SDI or eight 3G SDI Capture Card |
| GS-G2-ES-4C12GSDI | Upgrade event spec to Eight Input / Output, four 12G SDI or eight 3G SDI Capture Card |
| GS-G2-1C4KHDMI-4C3GSDI | Four 3G SDI or one HDMI 2.0 Capture Card |
| GS-G2-4C12GSDIB | Four 12G SDI Capture Card |
| GS-G2-4CHDMIB | Four HDMI Capture Card |
| GS-G2-8C3GSDIB | Eight 3G SDI Capture Card |
Downloads
- DVS G-SERIES Product Datasheet
G-SERIES Datasheet
Updated: 04-09-2024 Size: 438.83k
