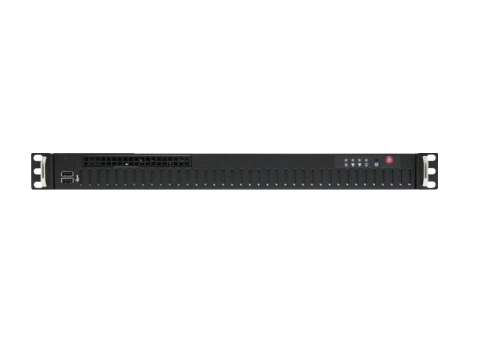

DVS 1U EXEC

The DVS 1U EXEC is an entry level control and production server. The intel-based processors options allow up to 8 cores with 16 threads for demanding single and multi-threaded workloads. The dual NVMe M.2 slots allow for blistering fast storage options, and the 2.5” and 3.5” drive bays allow for higher capacity options for storage.


Specifications

  • DVS 1U Rackmount Chassis - 381 x 482.6 x 44.4 (mm) (D x W x H)
  • 250 Watt PSU – 100 – 240V~, 3.5 – 1.5A, 50 – 60Hz
  • Intel Z490 Chipset Motherboard
  • Intel Processor - 4(8), 6(12) or 8(16) core
  • 4 / 8 / 16 / 32GB DDR4 Dual Channel Memory
  • 2 x NVMe M.2 Storage ( Up to 2TB )
  • 1 x 2.5” SATA Storage
  • 1 x 3.5” SATA Storage
  • 1 x 1Gb Network Port
  • 1 x 2.5Gb Network Port
  • Intel® 802.11ac WiFi + BT Module
  • Operating System - Windows Enterprise IoT LTSC 2019 or Windows 10 Pro


Variant Model Numbers

Model 10Gb Network
1U EXEC
1U EXEC-10G



Downloads

  • DVS 1U EXEC Technical Specification
    Updated: 23-10-2020 Size: 224.54k
    DVS 1U EXEC Technical Specification Also covers: DVS 1U EXEC-10G
