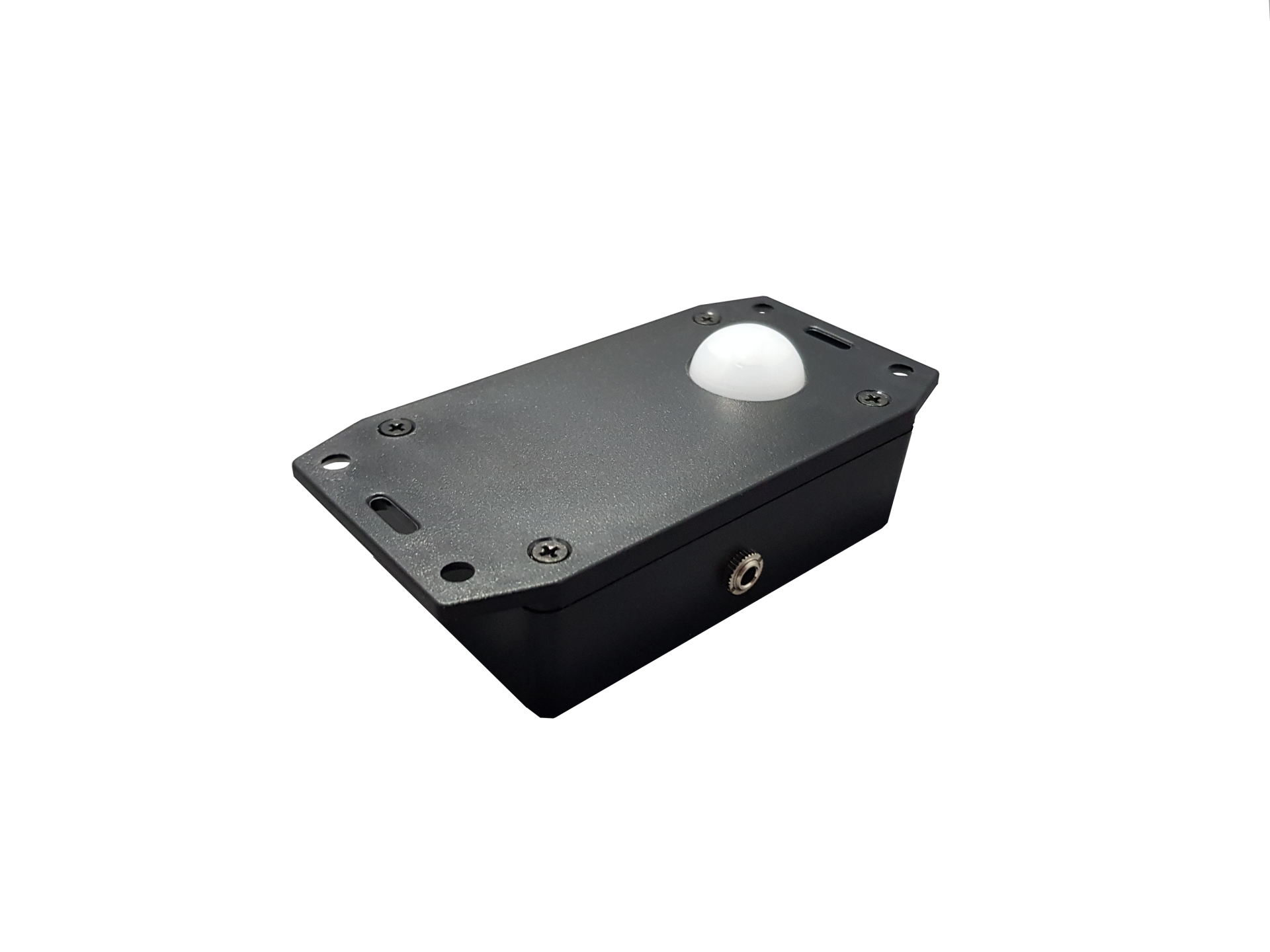

DVS PIR Sensor

The Digital Video Systems PIR sensor is a low voltage infra-red sensor designed for  detecting thermal movement. It can be powered by as little as 3 volts and is ideal for digital signage applications.

The trigger is active low, and so is held high ( at source voltage ) until the sensor  triggers. The unit can also be connected to a BrightSign directly, without need of additional power. The BrightSign version of the sensor comes with a 6-pin phoenix connector to plug into a BrightSign GPIO port.

Features

  • Detect a person up to approximately 4.5 meters away
  • Source current up to 12 mA @ 3 V, 23 mA @ 5 V
  • Onboard LEDs light up the lens for fast visual feedback when movement is  detected

Key Specifications

  • Power Requirements: 3 to 6 VDC; 130?A idle, 3 mA active (no load)
  • Communication: Single bit high/low output
  • Operating temperature: 0 to 50 °C ( 32 to 122 °F )




Downloads

  • DVS PIR Sensor Specification
    Updated: 11-12-2019 Size: 133.97k
    Manual and Specification for the DVS PIR Sensor. Effective range, operating voltage, operating temperature and dimensions.
